Dual 2*19 Pin Female Pin Header Connector 2.54mm DIP PBT / PA6T / PA9T / LCP

Dalee Electronic Co., Ltd.

Dual 2*19 Pin Female Pin Header Connector 2.54mm DIP PBT / PA6T / PA9T / LCP

  • 1
  • 2
  • 3

Brand Name : DALEE

Model Number : DL50010616

Certification : ROHS ,SGS, ISO9001

Place of Origin : Guangdong,China(Mainland)

MOQ : Negotiable

Payment Terms : T/T

Supply Ability : 1000K/month

Delivery Time : 5-10 working days

Packaging Details : Tube, Volume

Application : electrical appliances

Plastic material : PBT / PA6T / PA9T / LCP

Withstand voltage : 1000V AC/min

Product needle length : can customize

Working temperature : -40 ℃ ~ + 105 ℃

Color : Black

Pitch : 2.54

Pin : 2 * 2P ~ 2 * 40P

Contact Now

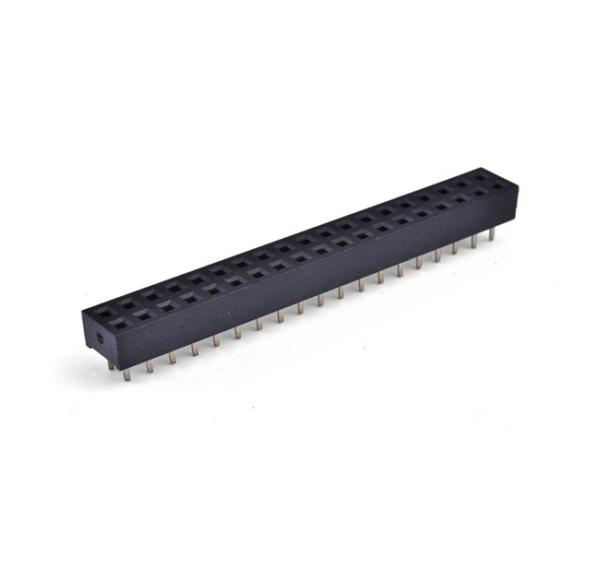

Dual 2*19 Pin Female Pin Header Connector 2.54mm DIP PBT / PA6T / PA9T / LCP

Whatever your requirements ,We offer through hole and surface mount connectors, with options for single and double row parts,
with pitch spacing: 1.00mm (.039”), 2.0mm (0.0782) and 2.54mm (0.050”).

If you do not see the solution,give us a call as we welcome a challenge

Product Details:

Product name: DALEE Female header connector
Secification: 2.54 mm Pitch
Type: DIP
Certification: ISO9001,UL,ROHS and the latest REACH
Current Rating: 1.0 AMP
Withstand Voltage : 500V AC/DC
Operating Temprature: -40 ℃ - +105 ℃
Insulation Resistance 1000M min
Contact Resistance : 20mΩ Max
Insulator Material: PA9T Black+30%GF UL94V-0 BK
Contact Plating: Au over Ni


Dual 2*19 Pin Female Pin Header Connector 2.54mm DIP PBT / PA6T / PA9T / LCP

Product Name: female header connector

1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity

2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0

3. Scope of application: widely used in various household appliances, electric toys,Digital products,

modern office equipment, industrial control and monitoring communications equipment and other fields.

Row mother classification:


1. The row mother is divided according to the spacing: divided into 0.8, 1.0, 1.27, 2.0, 2.54 spacing.
2. The row mother is divided according to the height of the plastic and whether it has bumps.

The bumps are divided into semi-convex and full-convex.
3. According to the row number of the pin row: divided into single row, double row, 3 row, 4 row, etc., the current maximum is only 4 rows.
4. According to the installation method: 180 degrees is represented by S, 90 degrees is represented by W, and SMT is represented by T.
5. According to whether it needs to be increased or not, it needs to be divided with positioning posts.

There are two kinds of positioning posts, one is internal positioning post and the other is ear positioning post.

Type of female terminal:

U terminal and Y terminal;

U-shaped terminal, there are three U-shaped terminals with general plastic height.

Y-type terminal, there are two Y-type terminals with general plastic height.

Payment term and delivery

1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

Dalee Electronic company is a high-tech company that integrates mold design, development, production, manufacturing, and sales as a professional connector manufacturer. Its main products are: board to board connectors, FFC / FPC flat connectors, SIM/TF/SD card holder, USB/HDMI/type-C socket, wafer connector, needle row mother, SATA and other precision connectors. our production process and raw materials are in line with the EU ROHS environmental protection directive requirements.
